Surveying, Laser Scanning & BIM

Love it, loathe it, or simply indifferent towards it - the industry and the Government have taken BIM on board so we all have to keep up with times and adopt some changes to our working practices.

So whats this BIM all about then?


Not exhaustive, but you can see where we're come from
Simply put it's a database for buildings accessed through a three dimensional model.  BIM is akin to GIS (Geographic Information Systems) which has been around for years and now the technology has developed to a point where BIM (or Building Information Modelling) can be implemented across the board to make lives easier & more cost effective at the end user stage of a project.  The problem is that BIM is part of a project from inception, but it's real benefits will not be seen for 5-10 years after project completion.

But this doesn't affect me........

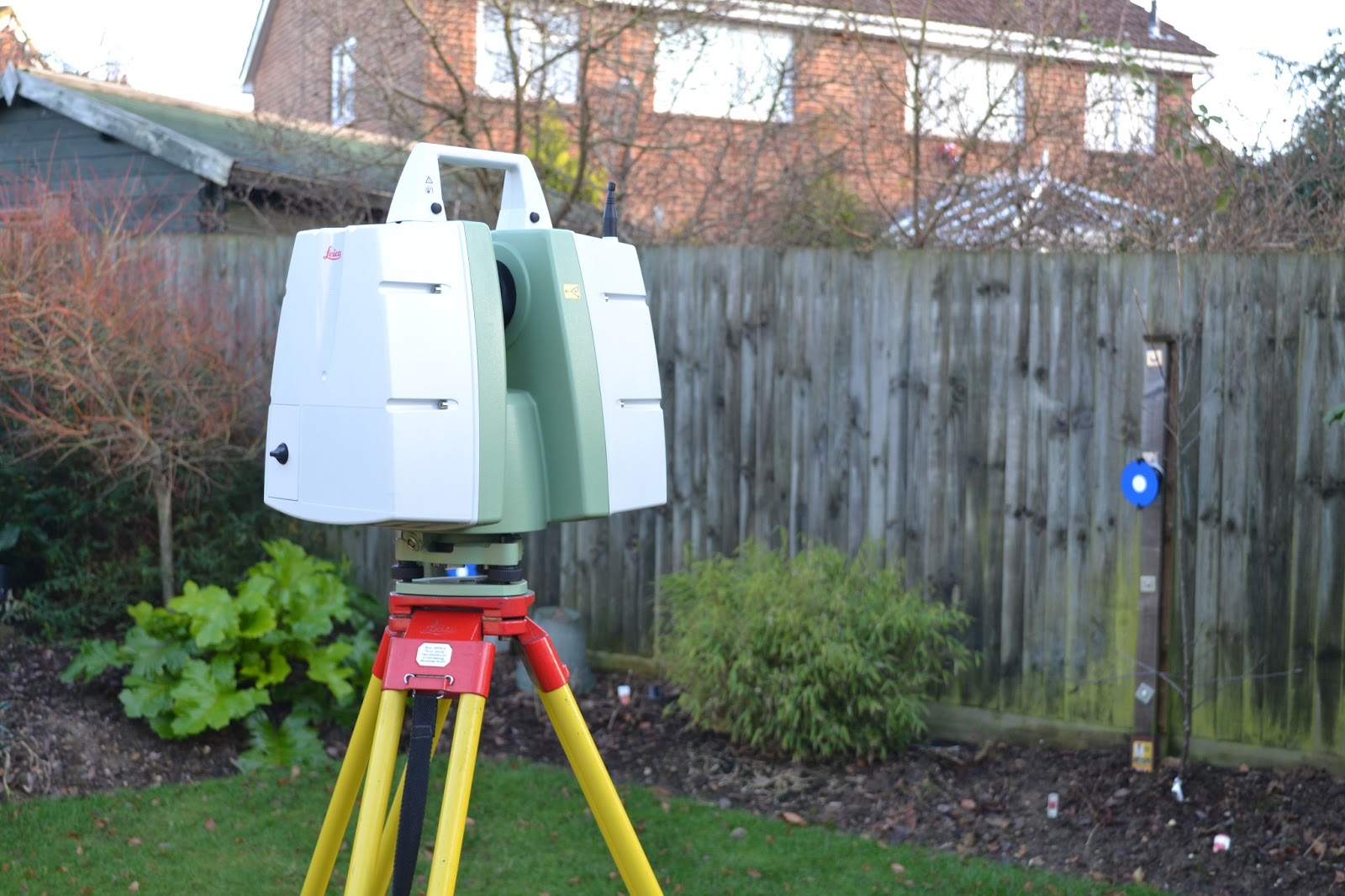

Leica C10 Laser Scanner
So why bother with it now as it is unlikely to provide us with a cost saving now? And how do we create this base model to build up from?

Well the basics lie in the Surveyors ability to create a 3D model of a site, something from a topographical stand point we have been doing for years but from a building stand point we are now having to utilise new technology to produce the required level of detail. As a general rule all buildings are surveyed in 3D and then flattened onto a 2D plane once back at the office, this is certainly true for laser scanning which can be used to create a fully referenced point cloud of a building, both inside and out. The real issue is down to cost, as Surveyors we can create the 3D model, but generally the client is only willing to pay for the 2D, when in reality the 3D has a far greater long term benefit.

Pure Point Cloud Data
Point Cloud Rendered in true colour
Laser scanning technology allows a massive amount of data to be collected in 3D in a very short space of time.  The images below show the results of two thirty minute scans, and about five minutes work in the processing software.  The first is a raw point cloud with rendering based on the intensity of the signal being received back from the surface being scanned.  The second image is the same raw point cloud but the colour from the photographs taken by the taken has been superimposed onto each point for a realistic impression of the site.  The next step from here to create the BIM model would be to mesh all of your scans (both internal and external) together and render the flat surfaces to remove the excess point data.  The results hopefully would be something similar to that shown below.


How far can we take you?


As Land Surveyors we can create the template of your existing building in a raw format, and given time we can develop our training to include the production of the bare bones model.  From this point on it is down to the Project Managers , and then the Estates team to develop this model to include the various functions it has the potential to record such as :-

  • Catalogues of all the light fittings, including replacement dates, suppliers details, costs
  • Position & alignment of all cabling and pipes, again with their suppliers and replacement dates
  • Basic room details and layouts
The potential is endless, but the on going maintenance of the system is essential.  Without constant up dating the system will soon become redundant and the whole process will need to be repeated at a much higher cost.  However keeping the system maintained will provide massive time savings when sourcing replacement parts, or even fabricating new elements into an existing system.

Want to know more?


  1. The BIM task group have been set up by the Government to ensure delivery of the Construction Strategy.
  2. BIM UK is a central resource containing all references for best practices for incorporating BIM.
  3. Building.co.uk is a leading construction website covering all elements of the construction industry including BIM.


The last word...


Like it or loathe it BIM is coming and we will all be racing to keep pace with this development which has been common practice in some of our European neighbours for some years.
